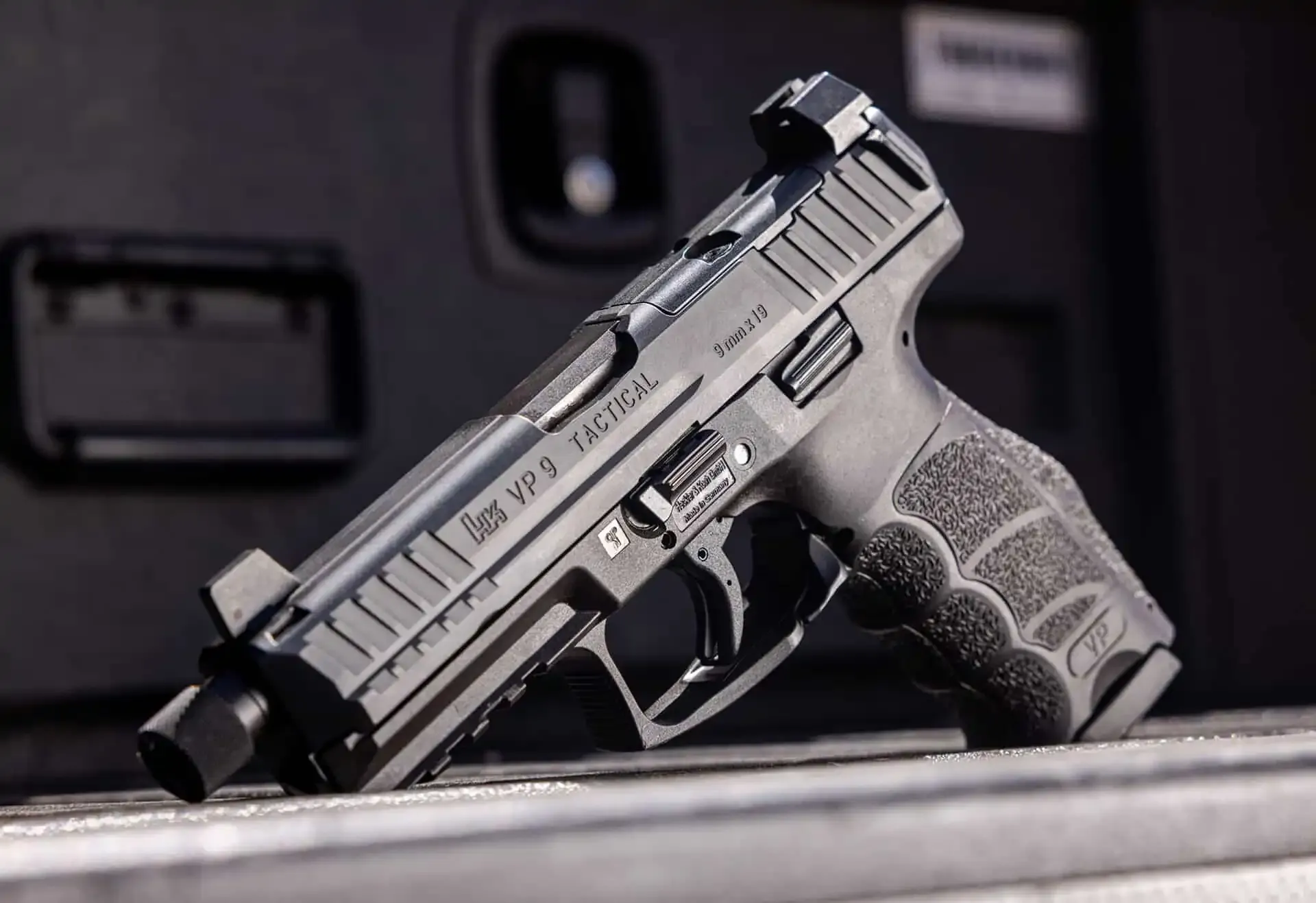

Heckler & Koch VP9: Development and Model Evolution

Key Takeaways

• The 9 mm VP9 debuted in 2014 after more than four years of development.
• HK expanded the platform through models including the VP40, VP9SK, VP9-B, VP9 Match, VP9A1, and VP9CC.
• The 2020 update added 17-round magazines, revised sights, and a factory optics-ready slide.

Heckler & Koch introduced the 9 mm VP9 to the American commercial and law-enforcement markets on June 10, 2014. The pistol had been under development for more than four years and marked the company’s return to striker-fired handguns after the earlier VP70 and P7 families. HK identified Oberndorf, Germany, as the VP9’s design and manufacturing base.[1]

The VP9 entered an established market for polymer-frame, striker-fired service pistols. Its place within HK’s product history was more distinctive. The company began producing the polymer-frame, striker-fired VP70 in 1970, followed by the striker-fired P7 with its squeeze-cocking mechanism. More recent HK service pistols, including the USP and P30 families, used external hammers. The VP9 restored a conventional striker system to the company’s catalog while carrying forward ergonomic ideas associated with the P30.[1][2]

The Original VP9

The original VP9 is a recoil-operated, striker-fired semiautomatic pistol chambered for 9 mm Luger. Cycling the action fully cocks the internal striker. Trigger pressure clears the articulated trigger safety and an internal drop safety before releasing the striker, producing a consistent trigger movement from shot to shot.[2]

The 2014 pistol measured 7.34 inches long, 5.41 inches high, and 1.32 inches wide. It weighed 26.56 ounces with an empty magazine and used a 4.09-inch barrel. Standard magazines held 15 rounds, with restricted-capacity versions also offered.[2]

The VP9’s controls accommodated right-handed and left-handed operation. Slide-lock levers appeared on both sides of the frame, while ambidextrous magazine-release paddles were positioned at the rear of the trigger guard. Removable charging supports projected slightly from each side of the slide behind the rear cocking serrations, giving the operator additional purchase when retracting the slide.[1][2]

The grip incorporated separate left- and right-side panels and a removable backstrap. Each component came in small, medium, and large sizes, yielding 27 possible combinations. Because the side panels could be selected independently, the grip could also be configured asymmetrically.[1][2]

Normal field stripping began with unloading the pistol, removing the magazine, locking the slide open, and rotating the takedown lever. The slide could then be moved forward and separated from the frame, and the recoil-spring assembly and barrel were removed.[2]

Expansion of the VP Family

The .40 S&W VP40 followed the original 9 mm pistol. HK stated that VP40 shipments began in June 2015. The model retained the VP9's adjustable grip, ambidextrous controls, striker-fired mechanism, and charging supports while using a 13-round standard magazine suited to the larger cartridge.[3]

The smaller VP9SK debuted at the 2017 NRA exhibition in Atlanta. It preserved the striker system, paddle magazine release, bilateral slide controls, adjustable grip panels, and charging supports in a subcompact configuration. Initial magazines held 10 rounds, with extended 13-round and 15-round versions announced for later availability.[4]

HK introduced the VP9-B for shooters who preferred a frame-mounted push-button magazine release. The reversible button replaced the original trigger-guard paddles without changing the pistol’s basic operating system. The two release arrangements immediately distinguish the VP9-B from the original paddle-release configuration.[5]

The standard VP9 received several production changes for 2020. New pistols came with flush-fitting 17-round magazines, a high-visibility front sight paired with a black serrated rear sight, and a slide cut for a miniature reflex optic. The optic cut came with a cover plate, while the necessary mounting plates were sold separately.[6]

These changes create two broad configurations among standard VP9 pistols. Early examples normally have 15-round magazines, luminous three-dot sights, and slides without factory optic cuts. The 2020 configuration combines a 17-round magazine, a revised sight arrangement, and an optics-ready slide.[2][6]

Long-Slide and Competition Models

The VP9 family eventually expanded beyond duty-size and subcompact formats. The current VP9 Match uses a 5.51-inch barrel and an extended, lightened slide. HK lists the pistol with an optics-ready mounting system and 20-round magazines, though it also catalogs restricted-capacity packages.[7]

The VP9 Match differs from the standard model with a longer slide, an elongated barrel, forward slide openings, and model-specific markings. These distinctions matter when identifying factory configurations because the broader VP family includes several pistols that share magazines, operating principles, and grip components but differ substantially in slide and barrel dimensions.

The VP9A1 Generation

HK introduced the VP9A1 F and VP9A1 K in January 2025. The A1 F is a full-size pistol with a 4.53-inch barrel and a frame compatible with 10-, 15-, 17-, or 20-round magazines. The A1 K combines a 4.09-inch barrel with a shorter grip designed for 10- or 15-round magazines. HK introduced both as optics-ready pistols.[8][9]

Changes applied to the A1 generation included a nickel-Teflon-coated trigger bar, factory-flared magazine well, revised ambidextrous controls, and additional slide serrations. HK also expanded the adjustable-grip system. Five backstraps and six side panels let you change grip circumference and trigger reach, producing 45 possible configurations compared with 27 for the original VP9.[8][9]

The A1 X combines the 4.09-inch barrel and corresponding slide length with the taller grip used for 17- and 20-round magazines. The three principal A1 configurations therefore divide into the long-barreled F, the full-grip X, and the shorter-grip K.[9]

Across the VP9A1 F, X, and K models, HK specifies short-recoil operation, a modified Browning-type linkless locking system, and a striker-fired mechanism. The listed trigger pull is 4.5 to 5.5 pounds, with 0.24 inches of total trigger travel and 0.12 inches of return travel. Standard A1 barrels have polygonal six-groove profiles with a right-hand twist.[9]

The VP9CC

In April 2026, HK extended the VP9 name to the VP9CC micro-compact. The company described it as part of the VP9 line, but its dimensions and magazine system distinguish it clearly from the earlier VP9SK and A1 K.[10]

The VP9CC has a 3.13-inch barrel, an overall length of 6.02 inches, a width of 1.14 inches, and a height of 4.41 inches. It weighs 17.64 ounces without a magazine and uses 10- or 12-round magazines. It retains a short-recoil operating system with modified Browning-type linkless locking and an internal striker.[11]

The smaller pistol retains ambidextrous controls, a paddle magazine release, rear charging supports, and interchangeable backstraps. Optics-ready versions use a compact mounting system designed for miniature sights appropriate to the narrower slide.[10][11]

Identifying VP9 Variants

Several external features separate the principal VP9 generations. The original pistol has trigger-guard magazine-release paddles, while the VP9-B has a frame-mounted button. Factory optics-ready slides identify the principal 2020 revision and later configurations. The SK, Match, A1, and CC models can be distinguished through their model markings, grip lengths, slide profiles, and barrel dimensions.[4][5][6][7][9][11]

Original packaging, supplied magazines, sight configuration, optic plates, interchangeable grip components, and factory paperwork provide additional evidence when evaluating whether a pistol remains in its original commercial configuration. Replacement magazines and removable grip parts can move between compatible pistols, so the firearm’s overall combination of markings and physical features is more informative than any single detachable component.

Frequently Asked Questions

When was the HK VP9 introduced?
Heckler & Koch introduced the VP9 to the American commercial and law-enforcement markets on June 10, 2014.

What type of operating system does the VP9 use?
The VP9 is a recoil-operated, striker-fired semiautomatic pistol. The original model is chambered for 9 mm Luger.

How can an early VP9 be distinguished from the 2020 version?
Early examples normally have 15-round magazines, luminous three-dot sights, and slides without factory optic cuts. The 2020 version added a 17-round magazine, revised sights, and an optics-ready slide.

What distinguishes the VP9-B from the original VP9?
The VP9-B uses a reversible, frame-mounted push-button magazine release. The original VP9 uses ambidextrous paddles behind the trigger guard.

What changed with the VP9A1?
The VP9A1 added a nickel-Teflon-coated trigger bar, flared magazine well, revised controls, additional slide serrations, and an expanded grip-adjustment system. Its five backstraps and six side panels provide 45 possible grip configurations.

Sources

[1] Heckler & Koch USA. “HK Launches New Striker Fired VP9 Pistol.” Heckler & Koch USA, June 10, 2014.

[2] Clapp, Wiley. “HK’s VP9: Total Reset.” American Rifleman, December 29, 2014.

[3] Heckler & Koch USA. “Heckler & Koch Brings .40 Caliber Power to Its New VP Striker Fired Pistol Line.” Heckler & Koch USA, June 12, 2016.

[4] Heckler & Koch USA. “HK’s Striker Fired VP9SK Introduced.” Heckler & Koch USA, April 24, 2017.

[5] McElrath, Daniel T. “Review: Heckler & Koch VP9-B.” Shooting Illustrated, December 18, 2018.

[6] Heckler & Koch USA. “Heckler & Koch 2020 VP9 Update.” Heckler & Koch USA, January 15, 2020.

[7] Heckler & Koch USA. “VP9 Match.” Heckler & Koch USA, n.d.

[8] Heckler & Koch USA. “Heckler & Koch USA Introduces the VP9A1 F & VP9A1 K.” Heckler & Koch USA, January 13, 2025.

[9] Heckler & Koch USA. VP9A1 Operator’s Manual. April 2026, pp. 7–11.

[10] Heckler & Koch USA. “Heckler & Koch Launches New VP9CC Micro-compact Pistol.” Heckler & Koch USA, April 8, 2026.

[11] Heckler & Koch USA. VP9CC Operator’s Manual. April 2026, pp. 7–10.
