AK Pattern Rifles for Collectors: Reading Receivers, Rivets, Marks, and More

I remember the first time an AK fooled me. I had been handling stamped Romanian rifles all morning when a friend handed over a milled Bulgarian. The moment it left the table I knew something was different. The heft. The smooth sides. The way the receiver felt like a single spine instead of a folded shell. That was the day I started really looking at AKs instead of just recognizing the silhouette. If you are shopping, collecting, or just curious, the rifle is already telling you a story. You just need to know how to read it.

Receivers are the fork in the road

When people say AK, they are talking about a family. And the biggest family split shows up right in the middle of the gun: the receiver. The original AK-47s started life as milled receivers. Later, the AKM pattern adopted a stamped receiver to simplify production and lighten the gun. Modern AKs, imports and domestic builds alike, will be one or the other. Get this part right, and your choices narrow quickly.

Milled and stamped build styles feel similar to a new buyer until you know what to look for. Once you do, you will spot the differences across a crowded gun show aisle. A milled rifle is a single chunk of steel machined down to the final form. A stamped rifle is a steel sheet formed into shape, with separate parts riveted in place. Both can run beautifully. Both can be made poorly. But there are clear visual cues.

Milled vs. stamped in plain language

Here is how to tell them apart without guesswork.

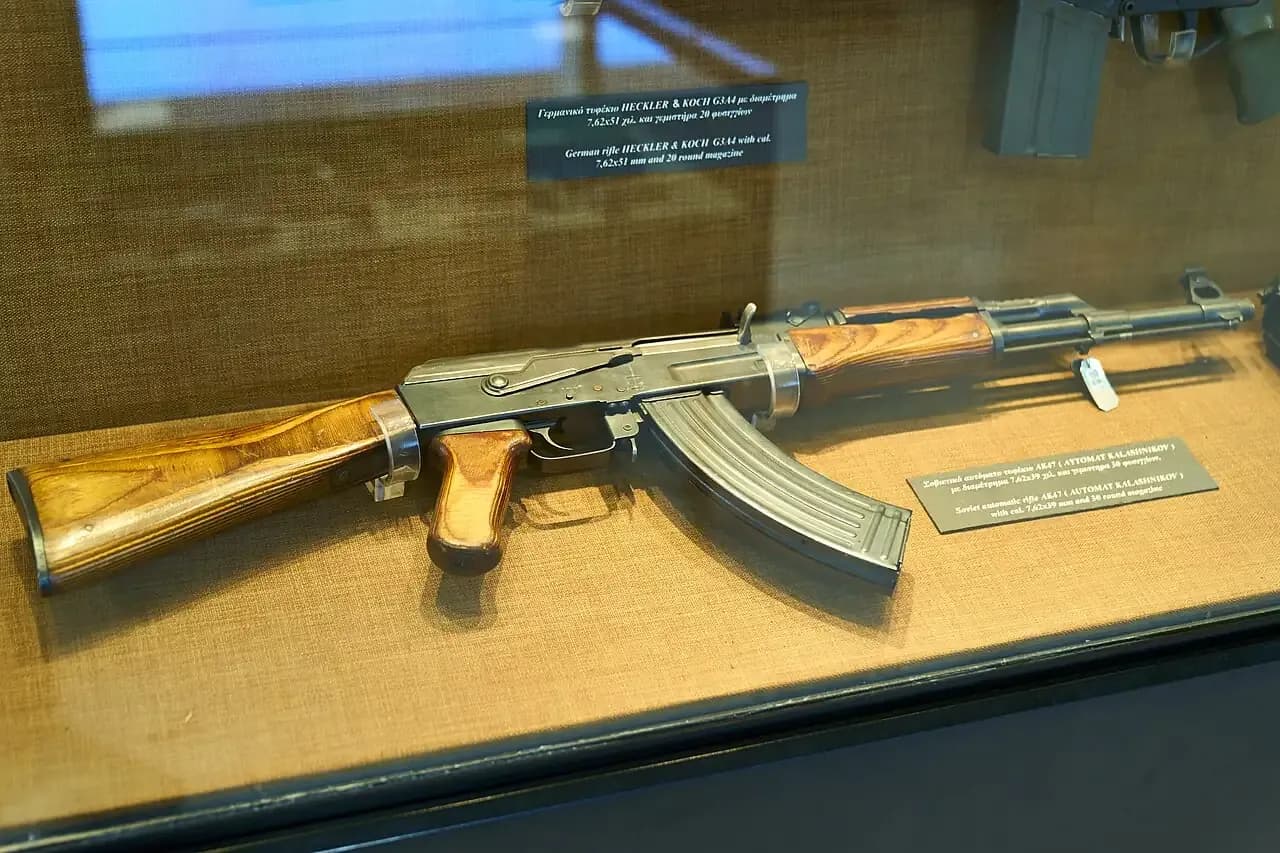

Milled receivers start as a solid block of steel, with material removed until the channels and exterior are right. You will see a long, rectangular lightening cut along the left side above or just in front of the magazine well. It is a big clue, often close to five inches long on many examples. Another giveaway is the lack of exterior rivets along the receiver sides. On a milled gun, features like the internal rails and the rear trunnion are part of the receiver itself rather than separate pieces attached later. Milled guns usually feel heavier in hand. Owners regularly note that the additional mass can make the gun feel rigid under recoil, and the added weight is not trivial compared to stamped examples.

Stamped receivers, by contrast, start as sheet steel. Common receiver shells on AKMs are roughly 1 to 1.5 mm thick before reinforcements. These rifles usually show several visible rivets along the sides where the trunnions and rails are attached. Look above the magwell for dimples. On many stamped guns, there is one on each side that acts as a magazine guide to help locate the magazine body. These dimples are relatively shallow, on the order of a tenth of an inch deep and under an inch in width. Inside a stamped receiver you will also find a center support and, depending on the configuration, reinforcement plates that add rigidity that the thin shell does not provide on its own.

If you want a deeper background on the manufacturing logic behind each style, Athlon Outdoors does a solid walkthrough of receiver identification details and what gets integrated on milled vs. riveted on stamped. The bottom line for a buyer or collector is simple: a milled gun brings mass and a monolithic feel, a stamped gun brings lighter weight and the traditional AKM look. Neither tells you everything about quality, but each comes with its own tells to study.

Trunnions and rivets: the bones and stitches of an AK

Once you have decided which receiver you are holding, look at how the critical parts are attached. On a milled receiver, the rear trunnion and the internal rails are machined as part of the receiver. You will not find rivets along the sides holding those parts in place. That is one reason milled sides look so clean.

On a stamped receiver, the front and rear trunnions and the rails are separate pieces that are riveted to the receiver shell. Those rivets are not decoration. They are the stitches that hold the rifle together. Visually inspect them. The heads should be even and sit down against the receiver with consistent crush. You do not want tall, sharp, or half-formed rivet heads. You also do not want rivets that look ground down to hide problems. Consistency is your friend here.

You will usually find a center support post inside a stamped receiver bridging the sides. Depending on the variant, there may be reinforcement plates pressed or spot welded in as well. The whole point is to restore rigidity to a thin shell. That is normal on stamped guns, and you can actually use the presence, placement, and quality of these features to tell a careful factory build from a hasty parts build.

Country flavors and nomenclature that actually help

Ask three AK folks about country variants and you will get five opinions. That is part of the fun. The trick is to lean on features that can be seen and confirmed.

One of the easier broad truths is that the country of origin often determines which receiver type you will encounter on the civilian market. Some sources aimed at first-time buyers put it plainly: today, origin often goes hand in hand with receiver style. That is not a universal rule, but it helps set expectations. For example, you will commonly see Romanian rifles like the WASR on stamped receivers, and Bulgarian milled examples from well known houses. Chinese commercial models from years past came in both styles, typically under different model names. You will also run into domestic builds in both flavors.

You will hear a lot of terminology tossed around. Some of it helps. The nickname Krinkov, for instance, is widely used among enthusiasts to describe short barrel AK variants in general. It is more slang than a precise technical term. Use it as shorthand, but not as gospel when you are evaluating a specific gun on a table.

When someone talks country of origin, they might also mention factory histories, changes over time, or batches that were importable at certain moments. That is the deeper rabbit hole. For buying and basic collecting, stick with the visible build choices, the markings in front of you, and the way the rifle was put together.

Arsenal and factory marks: where to look and what they imply

Now to the part that makes collectors pull out magnifiers. Factory and arsenal markings are more than decoration. They anchor a rifle to a place and usually to a time period and production line. On AK pattern rifles, those marks tend to show up on the receiver, the trunnion, and sometimes on small parts.

What to do about it at a show or in a shop:

• Slow down and actually read every line of text on the receiver sides. Note the model designation and caliber, then look for discrete maker or factory identifiers.
• Check the front trunnion if accessible without disassembly. You are often rewarded with additional codes or logos there. The same goes for the rear trunnion on some variants.
• Selector markings can hint at origin as well. The language and layout can be clues, though markings have been mixed and matched on some commercial builds.

Keep a small notebook or a phone album of markings you encounter and what rifle they were on. Over time, patterns emerge. The specific shapes and codes that matter most vary by country and factory. If a certain origin interests you, focus your study on that one and get hands-on with as many examples as you can. You will start to recognize fonts, engraving depth, and where different factories like to place their roll marks.

Furniture: wood, laminate, polymer, and what it tells you

The wood or polymer on an AK is easy to overlook because so much attention goes to the receiver. Do not. Furniture hints at era, use, and how much the rifle has been handled or modified.

On a rack:

• Look for movement. Grab the handguards and twist gently. A little play is not the end of the world, but loose wood can signal hurried assembly or wear.
• Check for cracks at the tang and around the sling swivel on the buttstock. Those are common stress points.
• Make note of refinish work. Sanded laminate with fresh stain looks different from factory finish. Matching finish between upper and lower handguard is a plus.
• Polymer stocks should sit tight with no gaps at the receiver. Screws should be snug and not chewed up.

None of this makes or breaks an AK on its own. But when you pair furniture condition with what you learned from the receiver and rivets, a much clearer picture forms.

Magazines: fit, dimples, and real-world checks

Magazines are half the AK experience. The rifle was designed around a curved magazine, and how that magazine locks up tells you a lot about the build sitting in front of you.

On stamped receivers, those little dimples above the magwell are there to help guide the magazine into place. On a healthy gun, you rock the mag in and it locks positively. A little side-to-side wiggle is common across AKs from various sources. What you do not want is a magazine that barely catches, pops free with light pressure, or sits so tight it needs to be forced.

If you have the chance, try more than one magazine style. Some rifles are particular about the exact magazine body shape they prefer. Steel and polymer often feel different going in. That is not a problem in itself. You are checking for consistent lock-up and smooth feeding. Inspect the top round as you cycle the action by hand. It should present cleanly to the chamber and not nose down or scrape hard enough to deform the bullet.

If you are evaluating a used rifle that clearly spent time with a single magazine, bring a couple of your own. A machine shop can tune magwells, and over the years some rifles have been fitted to one type of mag. That matters to a buyer who plans to actually shoot the rifle with a pile of mixed surplus magazines.

Import and market clues without myths

Collectors love the history behind how rifles arrive on the civilian market. There are a few practical, visible clues you can use without guessing or getting lost in debates.

• Markings that identify the maker and the commercial model name are common on the receiver. Record the exact wording and placement. Fonts and location patterns repeat across batches.
• Look for small markings on the barrel flat or receiver that might identify who brought the rifle into the country and where it was processed. The presence and placement of this information varies, but it can give you a sense of era and distribution channel.
• Note any evidence of configuration changes. Things like a muzzle device that looks newly pinned, a fresh front sight base, or a stock that does not match the rest of the wear on the rifle can all point to more recent work. That is not a problem by itself, but it is part of the rifle’s story.

When you combine those observations with the receiver type, the rivet work, and the furniture, you start to see the rifle as a whole instead of a parts list. That is where collecting gets satisfying.

A few familiar names you will meet

For context, it helps to know the names you will see over and over again in the AK conversation. Romanian WASR rifles are common stamped guns. Bulgarian milled examples from established builders have earned a following. Older Chinese commercial models surface regularly in both stamped and milled forms. Domestic makers have also produced both styles, and debates about quality follow all of them around the internet like a shadow. The point is not to crown one winner, but to recognize the build style and the tells that matter on the individual rifle you are holding.

If you want to see how different makers shake out at the range, Pew Pew Tactical has a broad view of tested AK rifles across budgets and origins. That is useful once you have narrowed down your target build type and want some shooting impressions.

A five-minute field checklist

When you have limited time at a table or in a shop, here is a quick process that steers you toward a good decision.

• Receiver type: Milled or stamped. Look for the long rectangular lightening cut on milled. Look for magwell dimples and multiple rivets on stamped. Note the overall weight in hand.
• Rivets and trunnions: On stamped, inspect rivet heads for even crush and alignment. Look inside for a center support. On milled, scan the sides for clean machining and that distinctive lightening cut.
• Bore and crown: Shine a light. You want sharp rifling and a clean crown. A good bore makes every other decision easier.
• Furniture fit: Twist the handguards gently. Check stock screws, sling swivels, and the buttstock tang area for cracks or movement.
• Magazine fit: Lock in at least one mag. Check for positive lock-up and moderate wobble. Cycle the action to see how the top round feeds.
• Markings: Read and record every marking on the receiver and trunnion that you can see. Factory identifiers, model names, and other markings help you research later.
• Overall handling: Cycle the action and feel for smooth travel. Dry fire with permission to feel the trigger. Inspect the sights to ensure they are straight and usable.

Wrap-up: building your eye for AKs

AK pattern rifles have a way of looking the same from far away and very different up close. Start by deciding what is in front of you. Is the receiver milled or stamped. On milled, look for the long lightening cut and the clean sides that come from machining a single steel block. On stamped, read the rivets, the dimples, and the center support like a mechanic listens to an engine. Then layer on what the furniture, the magazines, and the markings are telling you.

Keep it simple at first. Learn one or two countries or makers you like and get familiar with the normal features and finish you see on those rifles. When you are ready to branch out into another family of Cold War classics, our look at FAL rifles for collectors explores a different path to the same kind of satisfaction.

There are plenty of opinions out there. The nice thing about AKs is that the rifles themselves are generous with clues. Read the receiver. Study the rivets. Note the marks. Handle the magazines. Before long you will not just know which AK you want. You will know why.
